Electrodes

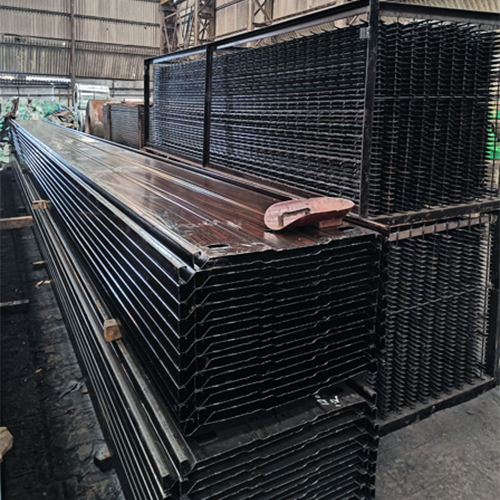

• Application
• Electrostatic Precipitators (ESPs) in power plants, cement, steel, and chemical industries

• Color
• Black/Brown (As per surface finish)

• Connection Type
• Bolt/Clamp connection

• Connector Type
• Mechanical Fastening

• Dimension (L*W*H)
• Customizable, standard range approx. 6m x 1m x 0.05m

• Efficiency
• >98% particle collection in typical application

• Feature
• High collection efficiency, robust design, corrosion and temperature resistant

• Humidity %
• Up to 90% RH

• Material
• Mild Steel/Carbon Steel

• Mounting Type
• Frame Supported/Module Mounted

• Operating Temperature
• Up to 400C

• Output Type
• Static Charge Collection

• Product Type
• Collecting Electrode

• Protection Level
• Other, Corrosion Resistant

• Shape
• Rectangular/Flat Plate

• Size
• Customizable as per ESP design

• Surface Finish
• Galvanized/Coated

• Weight
• Approx. 20-40 kg (varies as per dimension and design)

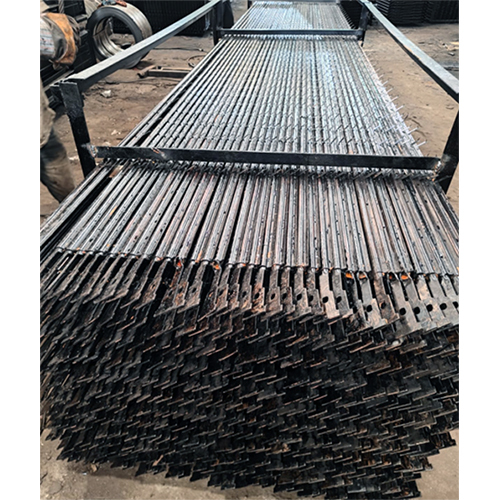

• Application
• Electrostatic Precipitator (ESP), Power Plants, Cement Industries, Steel Industries

• Color
• Black / Natural Metal Finish

• Connection Type
• Mild Steel Clamp / Welding

• Connector Type
• Clamp Connector

• Dimension (L*W*H)
• Typically 2-5 m (Length), 32-90 mm (Width), 1-12 mm (Thickness)

• Efficiency
• Consistent Discharge Efficiency in ESPs

• Energy Consumption
• Low (Passive component)

• Feature
• High Tensile Strength, Durable, Anti-corrosive Surface

• Humidity %
• Up to 95% RH

• Insulation Material
• None (Direct Conductive Material)

• Material
• Mild Steel / Cast Iron (as per requirement)

• Mounting Type
• Bolted / Clamped

• No Of Poles
• Single

• Operating Temperature
• -10C to 450C

• Output Type
• Electrostatic Discharge

• Phase
• Applicable for all phases (Not phase specific)

• Product Type
• Discharge Electrode

• Protection Level
• Other, Corrosion Resistant

• Rated Voltage
• Up to 100 kV (for ESP operation)

• Shape
• Flat Strip / Custom Profile

• Size
• Customized as per Requirement

• Surface Finish
• Galvanized / Black Finish

• Weight
• Approx. 3-5 kg (varies with size)

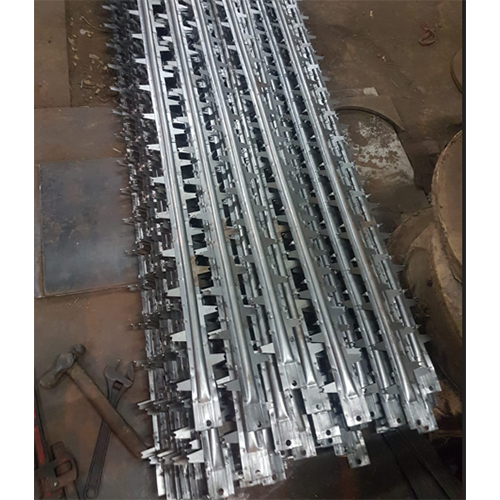

• Application
• Electrostatic Precipitators (ESP) for Dust Collection

• Color
• Silver / Grey

• Connection Type
• Mechanical clamp/bolted

• Connector Type
• End hook or coupling

• Dimension (L*W*H)
• Standard length: 2-4 m, Width: 40-60 mm, Height: varies

• Efficiency
• 99.7% collection efficiency (ESP system dependent)

• Energy Consumption
• Negligible (passive component)

• Feature
• High discharge efficiency, Low maintenance, Rigid construction

• Humidity %
• Up to 95% RH (non-condensing)

• Material
• Galvanized Iron/Steel

• Mounting Type
• Suspended in ESP frame

• No Of Poles
• Single

• Operating Temperature
• -10C to 400C

• Product Type
• ESP Discharge Electrode

• Protection Level
• Other, Corrosion Resistant

• Rated Voltage
• Up to 85 kV DC (dependent on ESP design)

• Shape
• Star / Bar / Pin / Rigid type (custom shapes available)

• Size
• Customizable as per requirement

• Surface Finish
• Hot Dip Galvanized

• Weight
• 3-8 kg (depending on length and design)
